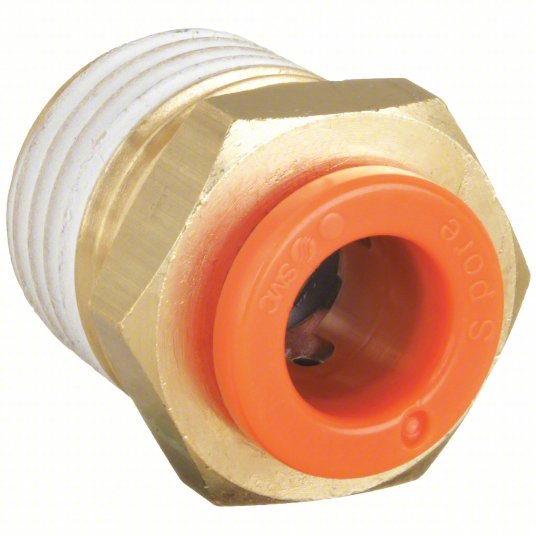

CONECTOR RECTO 3/8 T - 1/2 R SMC KQ2H11-04AS

Name: CONECTOR RECTO 3/8 T - 1/2 R SMC KQ2H11-04AS
Brand: SMC
Price: 57.12 MXN
Availability: InStock

$ 57.12 MXN

Oferta Agotado

Impuestos incluidos. Los gastos de envío se calculan en la pantalla de pago.

Descripción

Tube Size	3/8 in
Pipe Size	1/2 in
Hex Head Size	22 mm
Overall Length	22 5/16 mm
Fitting Side B Pipe Size	1/2 in
Fitting Side A Tube Outer Diameter	3/8 in

Item	Male Adapter
Material	Brass
Max. Pressure	145 psi
Connection Type	Push-to-Connect x MBSPT
Application	Air, Non-Potable Water
Standards	RoHS
Temp. Range	23 Degrees to 140 Degrees F
Fitting Shape	Straight Adapter
Fittings Sub-Category	Adapters
Color	Brass
Body Material	Brass
Maximum Operating Pressure	145 psi
Release Type	Button
Fitting Material	Brass
System of Measurement	Imperial
Minimum Operating Temperature	41 Degrees F
Includes Pre-Applied Thread Sealant	Yes
Fitting Side A Connection Type	Push-to-Connect
Maximum Operating Temperature	140 Degrees F
Compatible Tube Material	FEP, Nylon, PFA, Polyurethane, Soft Nylon
Fitting Side B Connection Type	MBSPT
