SMC

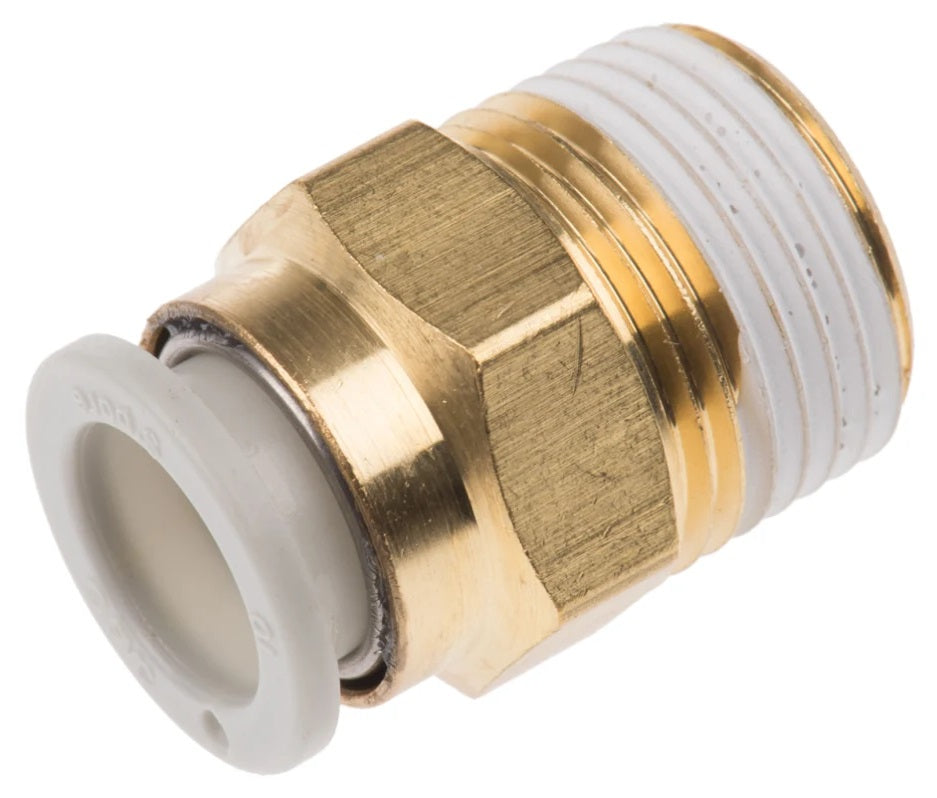

CONECTOR RECTO 10MM T - 3/8 R SMC KQ2H10-03AS

Name: CONECTOR RECTO 10MM T - 3/8 R SMC KQ2H10-03AS
Brand: SMC
Price: 43.20 MXN
Availability: InStock

$ 43.20 MXN

Oferta Agotado

Impuestos incluidos. Los gastos de envío se calculan en la pantalla de pago.

Descripción

Tube Size	10mm
Pipe Size	3/8 in
Hex Head Size	17 mm
Overall Length	23 1/2 mm
Fitting Side B Pipe Size	3/8 in
Fitting Side A Tube Outer Diameter	10 mm

Item	Male Adapter
Material	Brass
Max. Pressure	145 psi
Connection Type	Push-to-Connect x MBSPT
Application	Air, Non-Potable Water
Standards	JIS B0203, RoHS
Temp. Range	23 Degrees to 140 Degrees F
Fitting Shape	Straight Adapter
Color	Brass
Fittings Sub-Category	Adapters
Body Material	Brass
Includes Pre-Applied Thread Sealant	Yes
Fitting Material	Brass
Fitting Side B Connection Type	MBSPT
Minimum Operating Temperature	41 Degrees F
Fitting Side A Connection Type	Push-to-Connect
Maximum Operating Pressure	145 psi
Release Type	Button
System of Measurement	Imperial/Metric
Maximum Operating Temperature	140 Degrees F
Compatible Tube Material	FEP, Nylon, PFA, Polyurethane, Soft Nylon
